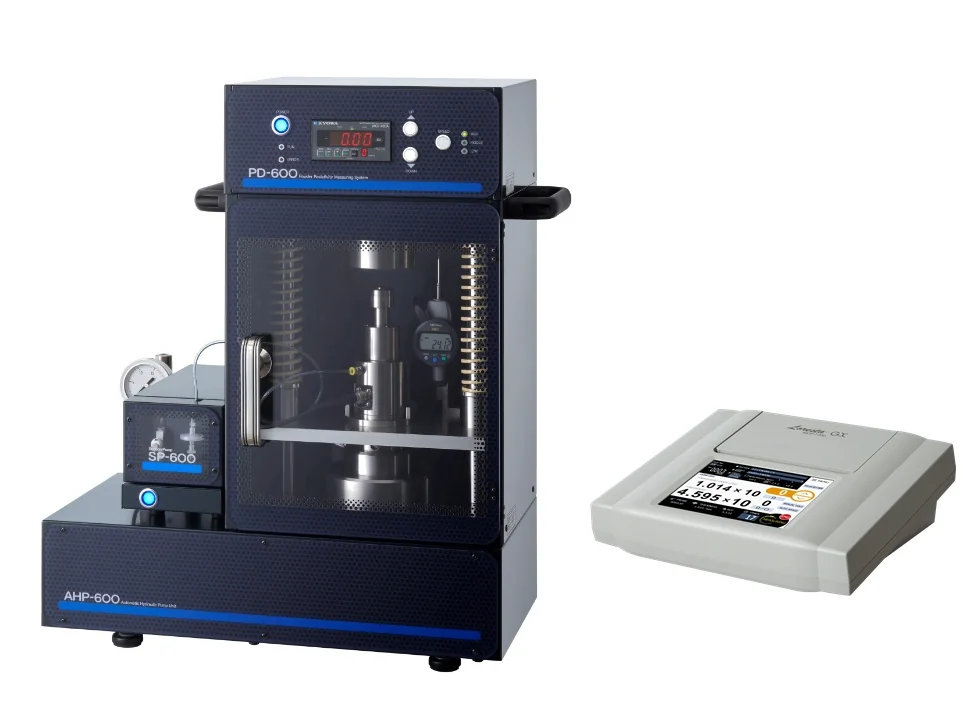

MCP-PD600 powder resistivity analyzer
Automatic powder resistivity analyzer for volume resistivity and compressed density of conductive powders, with built-in load cell and precision-controlled pressure up to 20 kN.
- Resistivity
- Metallurgy & smelting
Applications
- Battery electrode materials: graphite, carbon powder, LFP/NMC cathodes
- Carbon filters, coke and carbon fibres for electronics and energy
- Metal powders and conductive pastes for thin-film applications
- Quality control of toners, ferrites and pharmaceutical powders
Specifications
| Measuring principle | 4-pin / ring electrode under controlled pressure |
|---|---|
| Max load | 20 kN (equivalent to max 250 MPa) |
| Sample capacity | φ20 or φ10 x 40 mm |
| Electrode configuration | 4-pin (electrode spacing 2 or 3 mm) or ring electrode (φ13 mm) |
| Measuring range | Hiresta UX 10³–10¹⁴ Ω / Loresta GXII 10⁻⁴–10⁷ Ω |
| Main unit | W450 x D340 x H580 mm, 42 kg |
| Hydraulic pump | W570 x D370 x H320 mm, 29 kg |
| Power supply | AC 100–240 V, 50/60 Hz, 160 VA |
Description
The MCP-PD600 is Nittoseiko Analytech's automatic system for characterising powder resistivity. A built-in load cell monitors applied pressure up to 20 kN with high accuracy, and the unique probe unit with 4-pin or ring electrode enables direct measurement under controlled pressure.
The instrument measures both volume resistivity and compressed density, making it ideal for quality control of battery electrode materials, carbon filters, graphite, metal powders and other conductive or semiconductive powders.
Documents & datasheets
Service & support
The MCP-PD600 powder resistivity analyzer is an instrument we service daily. Our Nittoseiko technicians handle commissioning, calibration and spare parts with documented traceability.
- Annual planned service with documented protocol.
- Original parts and consumables from the manufacturer, stocked in the Nordics.
- Fast troubleshooting from our own technicians in the Nordics.
